Hydraulic Cement Pressure Testing Machine
Hydraulic Cement Pressure Testing Machine is sucked through the filter screen and be inhaled pump oil,through the petroleum pipeline of oil pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the tubing, pressure tubing through and through oil return valve to tank.
Control System:
Hydraulic Cement Pressure Testing Machine adopts hydraulic loading, electronic measuring, with a load of figures, the loading rate shows that the maximum load to maintain, as well as overload protection and power data retention and other functions.
Safety Protection Device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor
shut down.
Fixture:
Whole set fextures include: a set compression platen fixture
Technical Specifications:
| Max load KN | 100kN (resist bend) | 300kN (resist bend) | 302kN(resist bend and compress) |
| Test force measuring range KN | 4%-100%FS |
| Test Force showed relative error | ≤indicating value±1% |
| Test Force Resolution | 0.01kN |
| Hydraulic pump rated pressure | 27MPa |
| Bearing compress plate size | φ155mm |
| Max distance between the upper and lower plate | 230mm |
| Resist bending roll diameter | φ32mm |
| Max distance between upperand lower resist bend rollers | 165mm |
| between two bending rollers upon the center distance | 150mm |
| between two bending rollers under the center distance | 450mm |
| Piston diameter | φ130mm |
| Piston stroke | 80mm |
| Motor Power | 3 phase 0.75 kW |
| Outside dimension mm | 850×620×1340mm |
| Net weight | 400Kg |
Three Star Service : *First Star---Pre-service 24 Hours online service for your consult Help choose right model,and a series of service,person,advise. *Second Star---Middle Service --Give you best offer --Provide discount for many sets order --Do customer's request --Choose payment term you convienent. --Promptly production and delivery,inform you in time. --Can provide invoice value as you like to decrease your tax. . *Third Star---After serivce --1 year warranty service and all life maintenance. --Technical Egineer are avalible for oversea trainning. --Free change for some parts --Provide newest software vision when update --Remote control technical consult --Free installation DVD --Maintenance plan
More detail information ,please kindly contact with me .
|
|

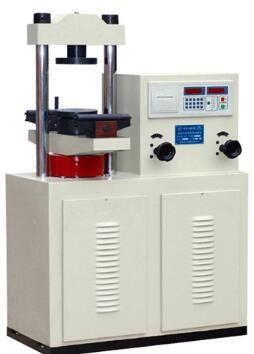

Hydraulic Cement Pressure Testing Machine Images
|
