Specifications

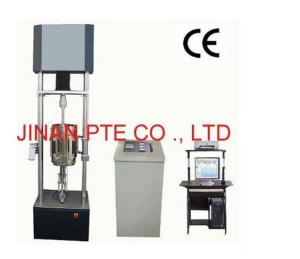

100KN RTH Computerized Electronic Creep Testing Equipment

Application:

Creep Testing Equipment is a kind of full electronic creep rupture testing machine to perform routine creep and stress-rupture test., and also can carry on stress relaxation test, high-temperature tensile test in short time, cycle load test (load spectrum test), low cycling test etc.

Test Load

• Max. Load: 30kN, 50kN, 100kN, 200kN
• Effective measuring range: 1%-100%FS;
• Test load accuracy: ≤1%;
• Resolution: 1/60000

High temperature furnace & Temperature-controller

• Working Temp. range: 400°C~1200°C
• Length of effective soaking zone: 150mm
• Furnace pipe & electric furnace size:
• Furnace pipe: φ90mm (Inner Dia.)×400mm (L),
• Furnace: φ300mm (outer Dia,)×420mm (L);
• Furnace life: ≥3000hours (Constant working time less than 1000°C)
• Furnace Temperature accuracy (°C):

1. Measure & Control temperature meter: digital display, sensitivity: 0.1°C;
2. Measure & Control temperature meter: digital display, sensitivity: 0.1°C;
3. Auto compensation error of cold end:≤0.5°C;
4. To be matched freely with thermocouple.
5. Moving speed of lower grip holder
6. Speed range: 0.005~50mm/min;
7. Error: ±0.5%
8. Timing error: ±0.2%
