Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment 20 KN WDW-20D

Brand Name : PTE

Model Number : Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment 20 KN WDW-20D

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Universal Testing Machine

standards : ASTM, DIN, BS, JIS, GB, etc.

test material : metal,plastic,rubber,spring, all kinds of rope material

fields : metallurgy, machinery, building engineering,industry,lab,factory

Load accuracy : ≤±1%

Contact Now

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment 20 KN WDW-20D

Applications:

WDW-20D Computer Control Electromechanical Universal Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards.

It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request.

It is for metal, rubber, plastic, spring, textile, wood and components testing. This universal tensile testing machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system is able to make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching , etc.

Specification:

Model	WDW-250/300D	WDW-200D	WDW-100D	WDW-50D	WDW-20D	WDW-10D
Max. Load	250/300KN	200KN	100KN	50KN	20KN	10KN
Load accuracy	≤±1% (≤±0.5% for special order)
Load range	2%-100% of full scale (0.4%-100% for special order)
Load resolution	1/200000 of full scale
Test speed	0.005-500mm/min
Speed accuracy	≤±1%
Displacement resolution	0.001mm
Deformation resolution	0.0001mm
Effective test width	570mm			450mm
Effective tensile space	600mm			600mm
Dimension	1110×750×2560mm		980×720×2150mm	800×550×1750mm
Power supply	380V, 3ph, 3KW		220V, 1ph, 1.5KW	220V, 1ph, 0.5KW
Weight	2100KG		1200KG	500KG

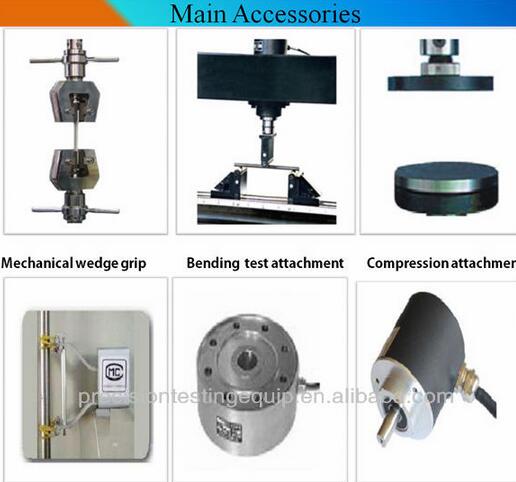

Grips	Wedge type, plate type and other grips as consumer’s demand

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment 20 KN WDW-20D

Electronic Power and Universal Testing Machine Usage Low Frequency Withstand Voltage Testing Equipment 20 KN WDW-20D

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
