High quality Digital Metal Impact Test Machine JBS-300C

Brand Name : PTE

Model Number : computer screen hypothermia automatic impact testing machine

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union

Delivery Time : wooden case

Packaging Details : within 10 days after the confirmed order

Usage : Impact Testing Machine

standards : ASTM, DIN, BS, JIS, GB, etc.

Impact speed : 5.24 m/s

Raised angle : 150°

Round angle of the jaw : R1-1.5mm

Round angle of impact edge : R2-2.5mm,R8±0.05mm

Angle accuracy : 0.1°

Capacity : 150J,300J,450J,600J,750J

Contact Now

Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring

the metal material resistance performance under dynamic load,in order to determine the material

properties under dynamic load.

It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,

but also used for the science research.

Standard:

GB/T3038-2002 “ Inspection for pendulum Impact Testing Machine”

GB/T229-1994 “Charpy notch Impact Test Method for metal material”

ISO148-1983

ASTM E23

EN10045

Model	JBW-300C	JBW-450C	JBW-600C	JBW-750C
Impact energy	300J	450J	600I	750J
Pre-angle of pendulum	150°
The distance between shaft and impact point	750mm	750mm	750mm	750mm
Impact speed	5.24m/s	5.24m/s	5.24m/s	5.24m/s
Specimen bearing span	40+0.2mm
Round angle of anvil	R1-1.5mm
Round angle of impact cutting edge	R2-2.5mm; R8mm
Angle resolving capacity	0.1°
Specimen size	10(7.5,5,2.5)mm×10×55mm
centering type	Manual operation
Power supply	380V/50Hz/5A

High quality Digital Metal Impact Test Machine JBS-300C

High quality Digital Metal Impact Test Machine JBS-300C

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan

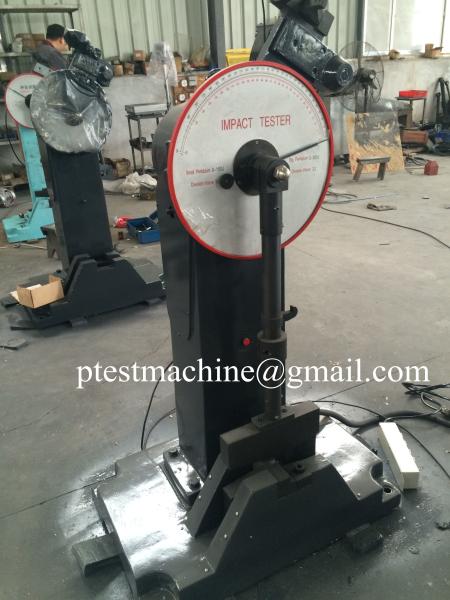

High quality Digital Metal Impact Test Machine JBS-300C Images
