Charpy Impact Low Temperature UV Chamber is designed according to Charpy notch Impact
Test Method for Metal Material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.
2. Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
Contact: David Email :ptestmachine@gmail.com
3.Features:
3.1Imported compressor, DANFUS valve, imported evaporation-condensation machine;
3.2Controlled by intelligent instrument, digital presentation temperature value, automatic control temperature, automatic time and alarm.
3.3high security, refrigerate fast, large volume
4. Main Specifications:
| Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 |
| Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° |
| Temperature Control Accuracy | ±0.5° |
| Temperature dropping speed | +30°C~0°C 1.2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min |
| 0°c~-20°C 0.8°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min |
| -20°C~-40°C 0.5°C/min | -20°C~-40°C 1.0°C/min | -20°C~-60°C 1.0°C/min | -20°C~-40°C 1.0°C/min |
| -40°C~-60°C 0.7°C/min | -60°C~-80°C 0.7°C/min | -60°C~-100°C 0.7°C/min |
| Cold Room Volume | 150×505×240mm |
| Dimensions | 900×505 ×850 mm | 900×505 ×850 mm | 900×505 ×850 mm | 1500×1200 ×1200 mm |
| Box Material | Steel Spray |
| Loading the number of samples | >60 | >60 | >60 | >200 |
| Mode of refrigeration | Compressor refrigeration |
| Cooling Medium | Ethanol or other unfrozen liquid |
| Power | 7Kw | 7Kw | 7Kw | 7Kw |
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
|
|

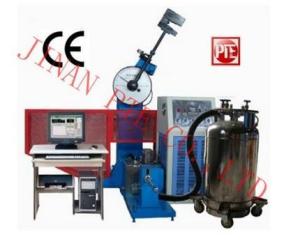

Charpy Impact sample cooling chamber Images
|
