WAW-300L Electronic Power dyno tensile test equipment

Machine Features:
1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;
Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.
2. Displacement measurement: adopts optical encoder with high accuracy and stability;

3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.
4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;
5. Clamp automatically: uses hydraulic grips with reliable holding;
6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;
7. Test report can be acquired according to requirements of customers;
8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;
9. Stable performance with little influence of temperature and voltage;
10. Multiple Servo control mode:Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation)
Control. Load keeping, Displacement Keeping, Customized programming Control, etc

Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan

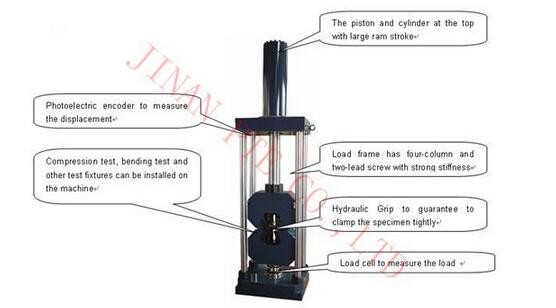

WAW-300L Electronic Power dyno tensile test equipment Images
